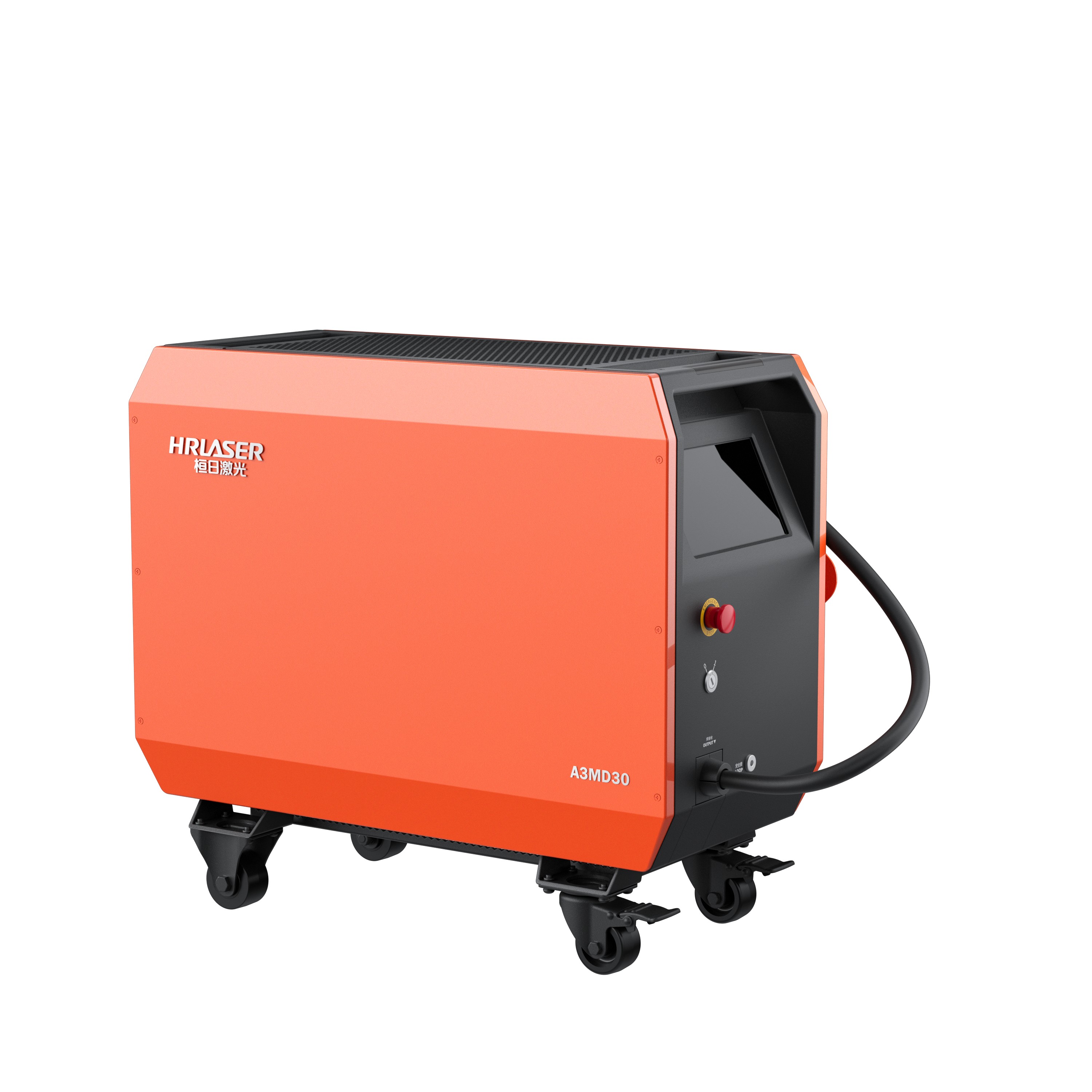

A3 Series-Air Cooled Fiber Welding Machine

Compact, intelligent air-cooled laser welding machine with high integration, low power consumption, and easy operation. With local support and warranty .
Shipping and Installation
1:1 Support and Training
12 Months Warranty
Starting at:
A$ 16,900.00 AUD
A$ 16,900.00 AUD
Make An Enquiry

Product Details

The  handheld laser welding machine integrates the laser, handheld welding head and control system together, and compared with the traditional handheld welding equipment, it has the remarkable features of simple configuration, high integration, small size, simple operation and high degree of intelligence. And has a low power consumption, compact structure, easy to use. Its flexible laser output mode

Benefits:

  1. High Precision and Accuracy: Ideal for intricate and detailed welding tasks.
  2. Strong, Deep, and Tight Welds: Ensures durability for critical applications like water tanks.
  3. Aesthetically Pleasing Welds: Produces smooth, rounded, and visually appealing weld seams.
  4. Versatility Across Industries: Suitable for machine building, kitchen and furniture making, installation engineering, design engineering, luminaire technology, food industry, and signage etc
  5. Enhanced Weld Quality: Delivers consistent, high-quality results for both functional and aesthetic requirements.
  6. Efficient and Reliable: Provides reliable performance for a wide range of industrial applications.
  7. Improved Productivity: Reduces the need for rework and ensures faster completion of welding tasks.
  8. Adaptable to Various Materials: Works effectively on different materials, meeting diverse industry needs.

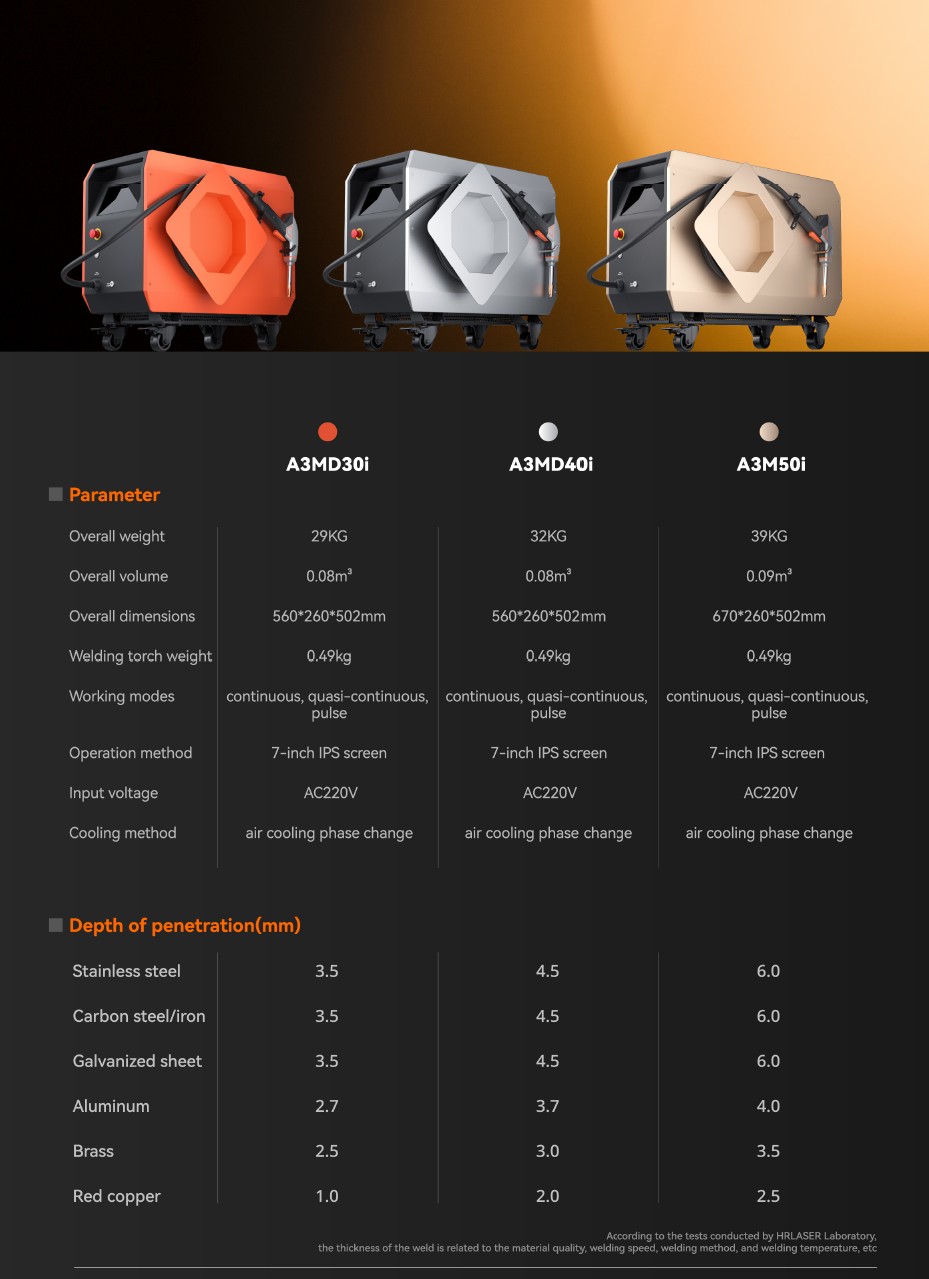

Product Specification

Parameter A3MD30i A3MD40i A3M50i
Machine Parameters
Overall Weight 29 kg 32 kg 39 kg
Overall Volume 0.08 m³ 0.08 m³ 0.09 m³
Overall Dimensions 560 × 260 × 502 mm 560 × 260 × 502 mm 670 × 260 × 502 mm

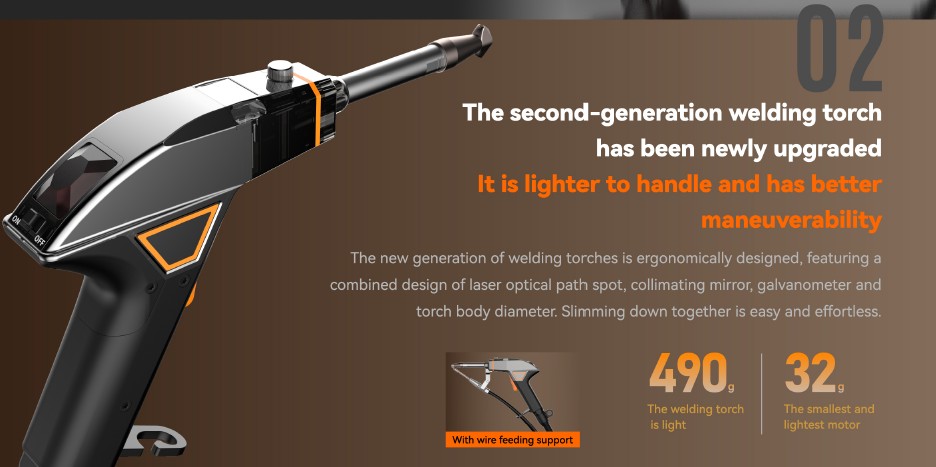

Welding Torch Weight 0.49 kg 0.49 kg 0.49 kg
Working Modes Continuous, quasi-continuous and pulse Continuous, quasi-continuous and pulse Continuous, quasi-continuous and pulse
Operation Method 7-inch IPS screen 7-inch IPS screen 7-inch IPS screen
Input Voltage AC 220 V AC 220 V AC 220 V
Cooling Method Air-cooling phase change Air-cooling phase change Air-cooling phase change
Depth of Penetration
Stainless Steel 3.5 mm 4.5 mm 6.0 mm
Carbon Steel / Iron 3.5 mm 4.5 mm 6.0 mm
Galvanised Steel 3.5 mm 4.5 mm 6.0 mm
Aluminium 2.7 mm 3.7 mm 4.0 mm
Brass 2.5 mm 3.0 mm 3.5 mm
Red Copper 1.0 mm 2.0 mm 2.5 mm

Penetration thickness may vary depending on material quality, welding speed, welding method and operating conditions.

Usable For These Materials

Aluminium
Mild Steel
Stainless Steel
Carbon Steel
